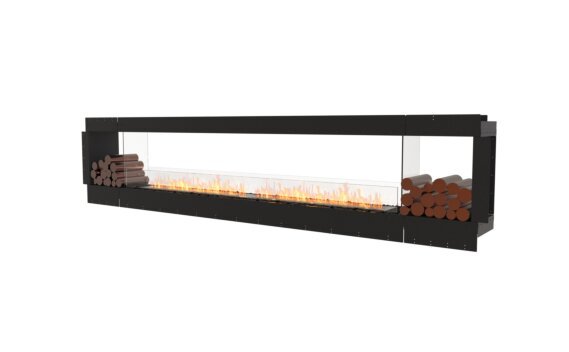

Flex 140DB.BX2 Double Sided Fireplace Insert

Flex 140DB.BX2 Double Sided Fireplace Insert

Provides a focal point for two rooms for a single installation cost.

With two open sides, Flex Double Sided fireplace insert creates the perfect room divider. The see-through design provides unobstructed views of the flickering flame from the front and the back, infusing warmth and ambiance into two adjacent rooms.

The Flex 140DB.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 130m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by EcoSmart Fire

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by EcoSmart Fire
Black
Black  - Studio Image by EcoSmart Fire

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Inspiration

EcoSmart FLEX50DB Castle_Hill AUS 4.jpg Open Gallery
Ansam Developments / Dural Gyprock / Australian Plastering Solutions Tiling / Visual Tiling Solutions
EcoSmart FLEX50DB Castle_Hill AUS 1.jpg Open Gallery
Ansam Developments / Dural Gyprock / Australian Plastering Solutions Tiling / Visual Tiling Solutions
EcoSmart FLEX50DB Castle_Hill AUS 2.jpg Open Gallery
Ansam Developments / Dural Gyprock / Australian Plastering Solutions Tiling / Visual Tiling Solutions
EcoSmart FLEX50DB Castle_Hill AUS 3.jpg Open Gallery
Ansam Developments / Dural Gyprock / Australian Plastering Solutions Tiling / Visual Tiling Solutions
EcoSmart Flex_50DB SBS_Building AU.jpg Open Gallery
SBS Building

Key Features

Application

Indoor or outdoor multi room application. With two open sides, view the flame from the front and the back.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes two decorative side boxes to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Technical Specifications

Construction

  • Weight 193kg [425lb]
  • Model Dimensions mm [in] W 3771mm [148.5in] D 354mm [13.9in] H 807mm [31.8in]
  • Viewing Area mm [in] W 3571mm [140.6in] D 352mm [13.9in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What are the benefits of using a bioethanol heater compared to heating your house with a reverse cycle air conditioner?

It’s important to understand the difference between “foundation” heating and occasional heating. Quite often these are two completely different yet complementary systems that work hand in hand. Reverse cycle air conditioning doesn't give you a beautiful flame and lifestyle benefits of an EcoSmart Fire. However, By combining reverse-cycle air conditioning and an EcoSmart Fire within your home you can have the ‘best of both worlds’ - effective heat and ambiance.

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

Do ethanol fireplaces smell?

All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

What is the difference between gel and EcoSmart Fire’s ethanol fireplaces?

There are key differences between gel fireplaces and ethanol fireplaces in terms of operation and performance. Gel fireplaces are operated by inserting and lighting tin cans filled with gel. The cans act as the burner mechanism. Gel fireplaces do not produce a long coherent flame as known from ethanol fireplaces and can be difficult to extinguish. EcoSmart Fire’s ethanol fireplaces use a clean burning liquid fuel made with fermented plants. The fuel is housed in a ethanol burner that allows for safe and easy operation. Ethanol fireplaces produce a beautiful, vibrant dancing flame. Gel fuel should never be used within an ethanol fireplace.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.
