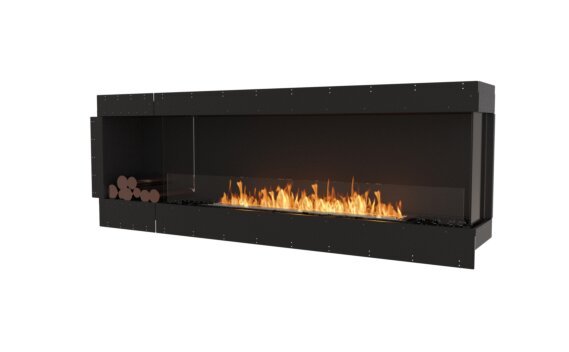

Flex 86RC.BXL Right Corner Fireplace Insert

Flex 86RC.BXL Right Corner Fireplace Insert

Upgrade any corner, and warm up your space with class.

Designed for single room installation, the Right Corner Fireplace Insert features two open sides. The transparent glass on the right corner enables the flame to be viewed from the front and the right corner, providing interior designers, homeowners, architects and builders with the freedom to customise their fire solution to suit a floor plan.

The Flex 86RC.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. With a 10L capacity, this elongated burner can heat up to 65m2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Product Configuration

Select Fuel Type*

Ethanol Ethanol Burner
Ethanol  - Studio Image by EcoSmart Fire

Select Burner Colour*

Stainless Steel
Stainless Steel  - Studio Image by EcoSmart Fire
Black
Black  - Studio Image by EcoSmart Fire

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal

Inspiration

EcoSmart FLEX104RC.BXL living_area.jpg Open Gallery
Digital Render
EcoSmart 50RC Lane_Cover AU 1_1.jpg Open Gallery
@dieppedesign / @lukebutterly
EcoSmart 50RC Lane_Cover AU.jpg Open Gallery
@dieppedesign / @lukebutterly
esf flex 68pn artisan builders us 3.jpeg Open Gallery
Artisan Builders

Key Features

Application

Indoor or outdoor single room application. With two open side, view the flame from the right and the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Technical Specifications

Construction

  • Weight 123kg [270lb]
  • Model Dimensions mm [in] W 2332mm [91.8in] D 365mm [14.4in] H 807mm [31.8in]
  • Viewing Area mm [in] W 2232mm [87.9in] D 340mm [13.4in] H 502mm [19.8in]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

Are EcoSmart Fires easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.

How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

Do EcoSmart Fire ethanol fireplaces give off any fumes or gases?

Bioethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. Clean burning and eco-friendly, ethanol fuel releases heat, carbon dioxide (the same stuff we exhale) and steam.

What is the difference between gel and EcoSmart Fire’s ethanol fireplaces?

There are key differences between gel fireplaces and ethanol fireplaces in terms of operation and performance. Gel fireplaces are operated by inserting and lighting tin cans filled with gel. The cans act as the burner mechanism. Gel fireplaces do not produce a long coherent flame as known from ethanol fireplaces and can be difficult to extinguish. EcoSmart Fire’s ethanol fireplaces use a clean burning liquid fuel made with fermented plants. The fuel is housed in a ethanol burner that allows for safe and easy operation. Ethanol fireplaces produce a beautiful, vibrant dancing flame. Gel fuel should never be used within an ethanol fireplace.

Do I need to service my ethanol fireplace in any way?

Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.
