Gin 90 Dining Fire Pit Table

Clever dual-purpose fire dining table for entertaining

Gin 90 Dining

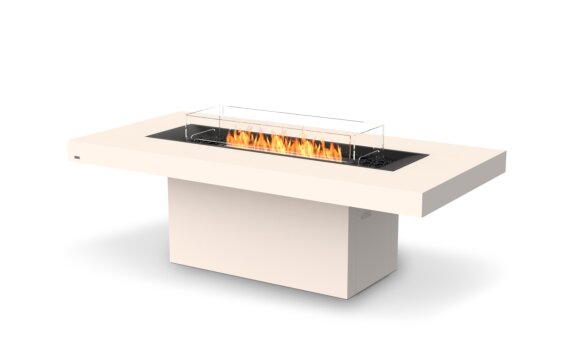

Perfectly proportioned as a functional, freestanding dining ‘table’, the EcoSmart Gin 90 Dining fire table adds a sense of luxury and style to indoor or outdoor spaces. Designed with room for dining chairs to be placed around the table, this stunning model features an elongated flame as its centerpiece. Gin 90 Dining fire pit table creates an impressive way to gather family or guests in an intimate and stylish setting.

Accessories

Included

L1520 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

XL Baffles

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Ethanol

Jerry Can 5L

The Jerry Can allows for the safe storing/decanting of e-NRG ethanol.

Ethanol

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

Ethanol

Lighting Rod

The Lighting Rod enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Ethanol

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Ethanol

Black Glass Charcoal

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

Optional

L1520 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

Concrete

L1520 Fire Screen

Screens help to minimise the impact of wind on the flame and reduce fuel consumption.

L65 Cover Plate

Transform the burner section of your Ecosmart fire table, easily turning it into a flat, usable coffee table surface.

LT90 All-Season Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

Gin 90 Dining Protective Cover

These Outdoor Fire Covers help to protect your investment. Made from UV coated Oxford fabric they repel dust, water and other debris for easy maintenance.

XL900 Silicone Burner Cover

Silicone Burner Covers protect ethanol burners from the elements when the EcoSmart fire table isn’t in use.

Specifications

Application

Indoor or Outdoor

Dimensions

L 2,272 mm [89.4 in]
W 1,098 mm [43.2 in]
H 745 mm [29.3 in]

Weight

Concrete 203.44 kg [448.5 lb]
Teak 171.44 kg [378 lb]

Materials

Fluid™ Concrete or Teak Wood Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner

Colour

Model

Natural

Graphite

Bone

Natural Teak

Burner

Stainless Steel

Black

Liquid Propane and Natural Gas are suited for Outdoor use only. Bioethanol is suited for both Indoor/Outdoor use; however, additional parts are REQUIRED for indoor use.
The weight includes the burner and black glass charcoal.
Line drawings show model with the Fire Screen installed.

Efficiency

Burner Information	Bioethanol	Liquid Propane	Natural Gas
Burner ConfigurationCompatible with this model	XL900	G37T	G37T
Volume CapacityHow much fuel	9 L 2.4 gal	N/A	N/A
Thermal OutputHow much heat it creates	15,000 BTU/h 15.83 MJ/h - 4 kW	65,000 BTU/h 68.58 MJ/h - 19 kW	65,000 BTU/h 68.58 MJ/h - 19 kW
Burn TimeHow long it lasts	8-13 h 9 L [2.4 gal]	8-20 h Tank	Unlimited
Fuel ConsumptionHow much fuel it consumes on MAX	0.8 L/h 0.21 gal/h	N/A	N/A
Heats on AverageHow much space it heats	60 m² 646 ft²	Outdoor Only	Outdoor Only
Minimum Room SizeRequired for this burner	110 m³ 3,885 ft³	Outdoor Only	Outdoor Only

These values are indicative ONLY and may vary depending on the model purchased,installation, and the fuel composition.
This model complies with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL 1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant for bioethanol burners.
To comply with EN 16647 the Indoor Safety Tray must be installed before operating indoors. LP/NG burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, and Gas Appliance Regulation 2016/426 as it applies to EU (CE) and UK (UKCA).

Downloads

Model Specifications

PDF

Clearances & Installation Manual

PDF

Installation & Operation Manual - Ethanol Burners

PDF

Videos

How to assemble and operate your XL Series ethanol burner

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to use the XL Baffles

How to assemble your glass cover plate

The product shown in this video is for demonstration purposes only and may not represent the exact model you are viewing.

How to install the Glass Fire Screen

thumbnail: esf-gin-90-dining-fire-table-clement-twins-a.jpg

Generous table space

The table's large surface area is perfect for setting down wine glasses and appetisers, making it ideal for hosting a party or gathering.

Practical for everyday enjoyment

Higher-set styles are perfectly – and practically – proportioned for placement of dining chairs / bar stools around the fire.

thumbnail: esf-gin-90-dining-fire-table-residential-space.jpg

Indoor or outdoor

Choose between three types of fuel to enjoy a warm fire anywhere, from the comforts of your home or in your outdoor space, depending on which fuel you choose.

Durability and peace of mind

Quality materials and toughened glass give peace of mind and make EcoSmart Fire tables the product of choice for many leading architects and designers.
