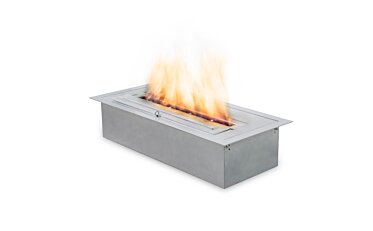

XS340 Ethanol Burner

Don't be fooled by its size up to 6 hours of vibrant heat.

A scaled back version of the XL ethanol burners – the ideal solution for tailor-made installations where space is at a premium. Don’t be fooled by its size – the XS340 holds 2.5L of environmentally-friendly bioethanol and burns for up to six hours.

Product Configuration

Select Model Finish*

How to choose the right finish?
Stainless Steel
Stainless Steel  - Studio Image by EcoSmart Fire
Black
Black  - Studio Image by EcoSmart Fire

Select Top Tray*

XS340 Top Tray
XS340 Top Tray Black

Included Accessories

  • Fire Lighter
  • Lighting Rod
  • Jerry Can 5L
  • Bottle Adaptor
  • XS340 Top Tray

Inspiration

ESF_XS340_FufuKyuKaruizawa_6.jpg Open Gallery
FUFU KYU-KARUIZAWA Restful Forest
ESF_XS340_FufuKyuKaruizawa_7.jpg Open Gallery
FUFU KYU-KARUIZAWA Restful Forest
ESF_XS340_FufuKyuKaruizawa_8.jpg Open Gallery
FUFU KYU-KARUIZAWA Restful Forest
ESF_XS340_FufuKyuKaruizawa_9.jpg Open Gallery
FUFU KYU-KARUIZAWA Restful Forest

Key Features

Signature style

Clever design and compact size enable the XS340 to be incorporated into smaller or recessed spaces. Indoor or out, the choice is yours.

Year-round enjoyment

Operates under all conditions, at all temperatures, reliably and consistently.

Easily extinguished

‘Flip lid’ shut-off system fits perfectly across the ignition zone to extinguish the flame, each and every time.

No flue, no chimney

There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce soot or smoke.

New or existing

Use the XS340 to create your own vision, or to transform an existing fireplace, the XS340 is the ideal – and simple – solution.

Clean burning

Fuelled by eNRG, an environmentally friendly renewable energy. Burns clean, doesn’t harm the environment.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Technical Specifications

Construction

  • Weight 5.4kg [11.90lb]
  • Model Dimensions mm [in] L 382mm [15in] W 232mm [9.1in] D 107mm [4.2in]
  • Application Indoor & Outdoor
  • Materials Stainless Steel Grade 304
  • Colours
Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align.

Fuel Efficiency

Volume Capacity
2.5 L
0.7 Gal
Heats on Average
20m2
215ft2
Minimal Room
45m3
1589ft3
Thermal Output
8530 BTU/h
2.5 kW 8.9 MJ/h
Burn Time
5 h
2.5 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

What is an ethanol fireplace burner?

EcoSmart Fire’s ethanol fireplace burners allow you to bring your vision to life and create a truly unique and custom fireplace. Completely self-contained, our ethanol burners have no need for exterior tanks or utility lines and their stainless steel bodies make them suitable for both interior and exterior use. Easily integrate a round, square, or linear ethanol burner into media units, cabinetry, walls, pillars, stone benches and more to create your custom ethanol fireplace design. EcoSmart Fire’s ethanol fireplace burners are available in a range of sizes and can be placed side by side for a longer flame.

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

How does an ethanol fireplace work?

EcoSmart Fire’s ethanol fireplaces are self-contained, burning bioethanol fuel that is housed within the stainless steel container. A flame regulator controls and stabilizes the flame. With a designated filling area, and easy shut off mechanism, you can ignite the flame and turn it off in a matter of seconds. View this quick demonstration video to help illustrate the process.

Do bioethanol fireplaces produce heat?

Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.

How large of an area will my ethanol fireplace heat?

The heat output of our indoor and outdoor ethanol fireplaces vary based on the model selected. When used indoors, EcoSmart Fire’s ethanol fireplaces comfortably heat between 215 sq feet and 700 sq feet.

How long does it take to assemble?

There is virtually no assembly. Our Freestanding and Fireplace Grates ranges are designed to be placed into the desired location, secured into position, and operated immediately. Our Fireplace Inserts are designed to slot into place, secured and built around with your preferred finish – again a quick and easy installation – so your builder or interior designer will love you!

The longest part of the setup process is trying to figure out where you want to place it – be sure it complies with our clearance requirements particularly with regard to moving objects like curtains, tree branches and so forth.

What is the difference between gel and EcoSmart Fire’s ethanol fireplaces?

There are key differences between gel fireplaces and ethanol fireplaces in terms of operation and performance. Gel fireplaces are operated by inserting and lighting tin cans filled with gel. The cans act as the burner mechanism. Gel fireplaces do not produce a long coherent flame as known from ethanol fireplaces and can be difficult to extinguish. EcoSmart Fire’s ethanol fireplaces use a clean burning liquid fuel made with fermented plants. The fuel is housed in a ethanol burner that allows for safe and easy operation. Ethanol fireplaces produce a beautiful, vibrant dancing flame. Gel fuel should never be used within an ethanol fireplace.
